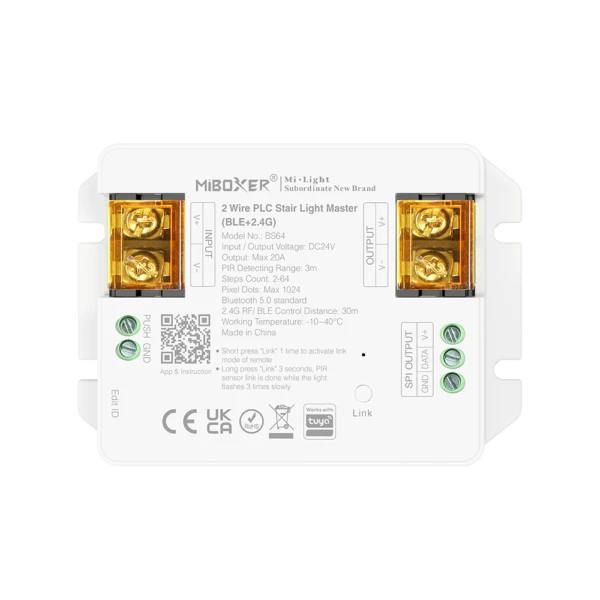

Mi-Light BS64 2-Wire PLC Stair Light Master (BLE+2.4G)

Mi-Light BS64 is an advanced and intelligent main controller, specifically designed to automate and create dynamic lighting effects in staircases. It functions as the central unit in MiBoxer's stair lighting system and can illuminate the steps sequentially, based on motion detection. It supports both standard constant voltage LED strips (via sub-modules like BS-L2C) and addressable SPI LED strips for advanced "dream color" effects. Control is conveniently done via Bluetooth, 2.4GHz RF, or directly via an OLED screen on the device.

Key Features

• Motion Detection: Typically comes with two PIR motion sensors (one for the top and one for the bottom of the stairs) to detect movement and direction.
• Sequential Stair Lighting: Activates LED lighting step-by-step, either upwards or downwards, creating a visually appealing "following light" effect.
• Flexible LED Compatibility:
  • Constant Voltage LEDs: Can control up to 64 stair steps with standard single-color, CCT (adjustable white), or RGB LED strips via 2-wire Power Line Communication (PLC) to sub-devices like BS-L2C.
  • SPI (Addressable) LED Strips: Has direct support for up to 1024 pixels with addressable LED strips (e.g., WS2811, WS2812, WS2815, SK6812) for complex color animations and effects.
• Extensive Configuration Options:
  • Setting the number of stair steps (2-64).
  • Adjusting sequence speed and brightness.
  • Setting the delay time before the lighting turns off.
  • Night light/dim light setting for basic illumination.
  • Time setting for operation (e.g., to prevent false triggers during the day).
  • Four light sensor modes for adaptation to ambient light.
  • Advanced settings for SPI strips: color calibration, point setting, color and brightness adjustment.
• Control Interface:
  • Built-in OLED screen and buttons for easy local configuration and overview.
  • Bluetooth (BLE) for control via MiBoxer/Tuya smart apps.
  • 2.4GHz RF for wireless control with compatible MiBoxer remote controls.
• Protection Functions: Includes short-circuit protection and reverse polarity protection for increased safety and lifespan.

Areas of Application

The MiBoxer BS64 is perfect for creating modern and intelligent lighting solutions in stairwells, both in homes and commercial properties. Its ability to adapt to various LED types and its wide range of configuration options make it highly versatile for custom lighting projects.

Important Note

For a complete system, in addition to the BS64, LED strips for the stair steps (CCT via BS-L2C modules or SPI), a suitable DC24V power supply, and potentially T-splitter cables (MiBoxer BS-TS) for easier installation are required. Installation requires some knowledge of electrical connections.
