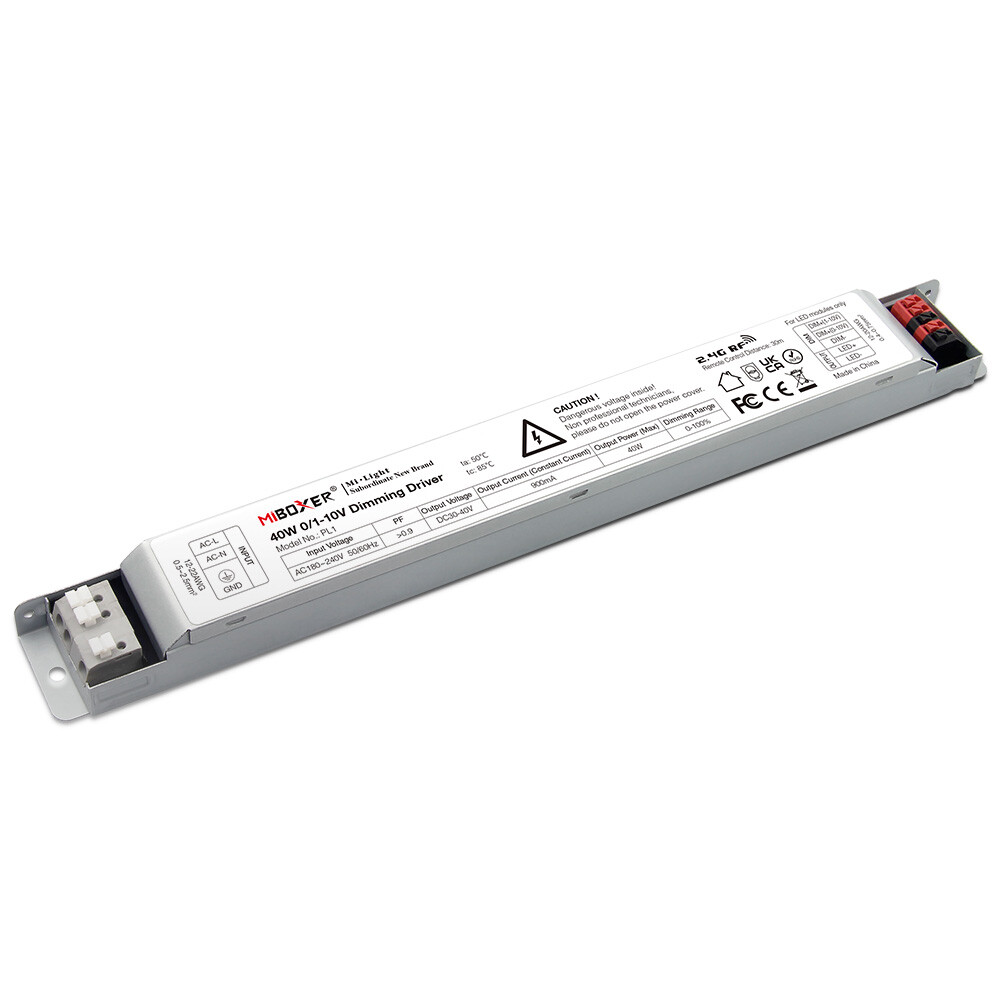

Mi-light PL1 40W 0/1~10V Dimming Driver (2.4G)
14 verkauft in den letzten 24 Stunden
Artikelnummer |
180360 |
EAN |
6970602180360 |
MPN |
PL1 |
Beschreibung
Miboxer PL1
PL1 LED controller allows for smooth regulation of the brightness of the white light. The working range of the device is 30-40V DC and the maximum power cannot exceed 900mA. This LED controller can be controlled via remote control or smartphone app (for the smartphone app control the additional WL-Box is required). Additionally, the LED controller has a function of auto-synchronisation and auto-transmission of the signal. Auto-transmission function allows extending the control range to an unlimited distance. For example, if you have just one controller you can control the lights from a distance of 30m but if you have 5 controllers and the distance between them is up to 30m then your last controller can be 150m away and you will still be able to control it thanks to the auto-transmission function.
Spezifikationen
| Model number | PL1 |
| Application | MONO - single colour LED panels |
| Output voltage | 30V-40V DC |
| The maximum output current | 900mA |
| PF | >0,9 |
| Controlling method | Radio |
| Controlling range | up to 30 meters in an open area (possibility of signal extension by signal retransmission) |
| Control frequency | 2,4GHz |
| Output signal | PWM |
| Additional control | 0-10V, 1-10V, 10V PWM, PushSwitch and Wi-Fi module (WL-Box1). |
| Working temperature | -20 – 60°C |
| Return to previous settings when power is off | No |
| Color | White |
| IP class | IP20 |
| Dimensions[mm] | L279 x W30 x H21 |
| Certification | RoHS, CE, UKCA |
| Warranty | 2 years |
| EAN | 6970602180360 |
