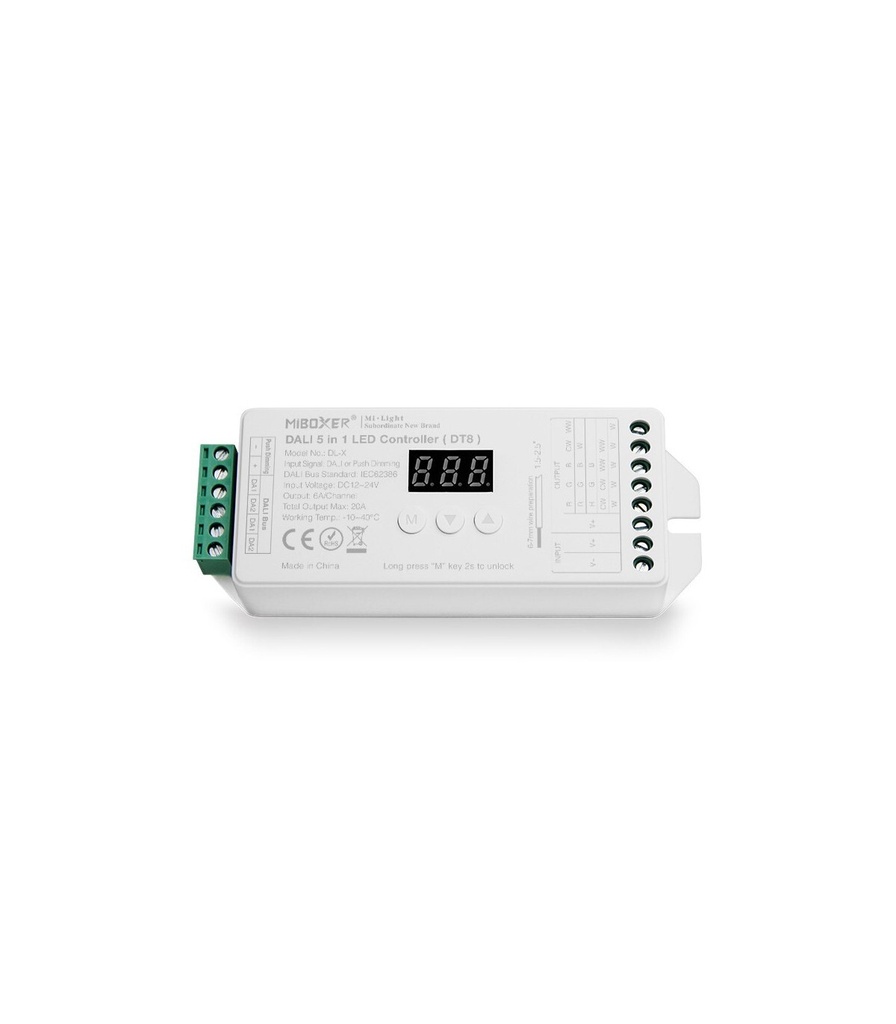

Mi-Light DLX DALI DT8 5 IN 1 Strip controller (DALI)
5 sold in last 24 hours
Have the power to create stunning and functional lighting solutions for any space
Article No. |
181343 |
EAN |
6970602181343 |
MPN |
DL-X |
Descriptions
The MiBoxer DL-X is a versatile DALI controller capable of controlling various types of LED lights. This advanced device offers exceptional flexibility and customization options for your lighting system.
- Residential: Create dynamic lighting experiences in homes.
- Commercial: Enhance ambiance in restaurants, hotels, and offices.
- Retail: Highlight products and create shopping experiences.
- Hospitality: Tailor lighting to different moods and occasions.
Files
Specifications
| Application | MONO/CCT/RGB/RGB+W/RGB+CCT |
| Input/output voltage of the receiver | 12V DC or 24V DC |
| Maximum output current | 20A |
| Number of outputs of the receiver | 5outputs: (R/G/B/CW/WW) |
| Controlling method | wired (DALI) |
| Model number | DL-X |
| Working temperature | -20 – 60°C |
| Input connector (power supply) | Screw terminals for bare wires |
| Output connector (terminal) | Screw terminals for bare wires |
| Color | White |
| IP class | IP20 |
| Dimensions[mm] | L130 x W49 x H27 |
| Certification | RoHS, CE, UKCA |
| Warranty | 2 years |
| EAN | 6970602181343 |
