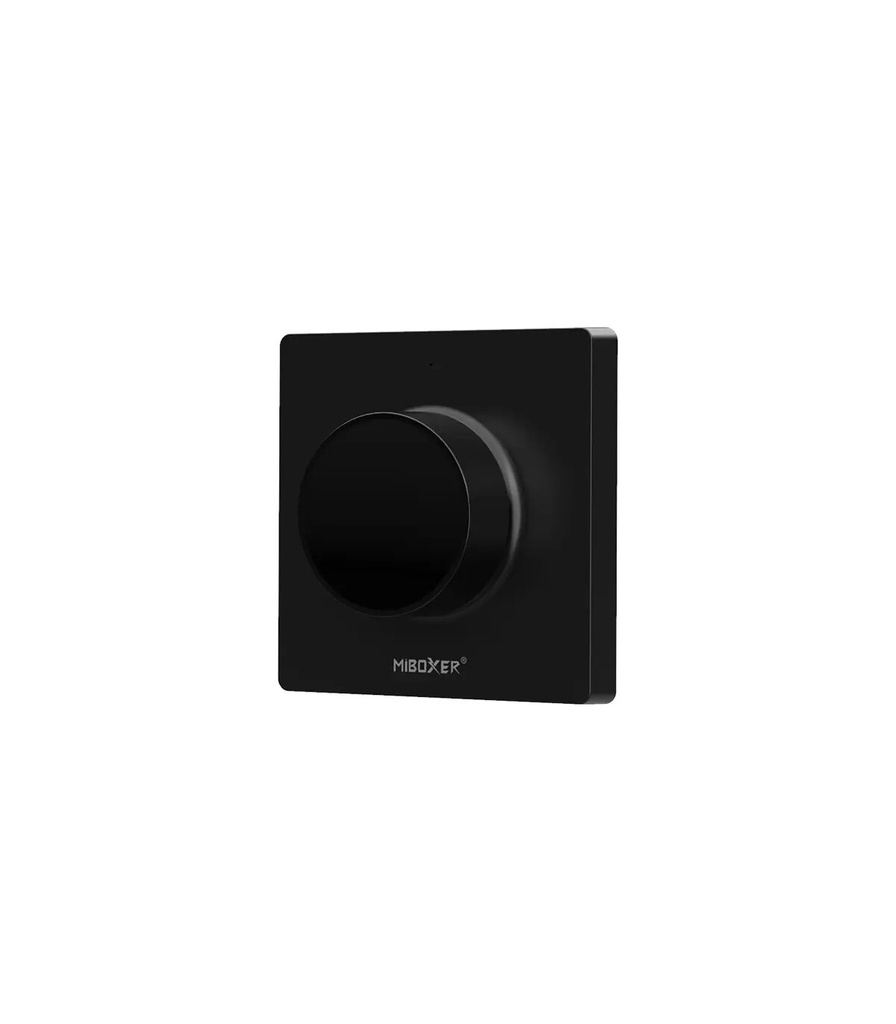

Mi-light K1 Rotating panel remote 2,4 gHz Black
10 sold in last 24 hours
Article No. |
181978 |
EAN |
6970602181978 |
MPN |
K1-B |
Descriptions
Miboxer K1
K1 wall-mounted radio panel from the MiBoxer brand is a 1 zone wireless, surface mounted dimmer that allows dimming or brightening installations made of MONO (single color) LED lighting products, as well as control of CCT (dual white), LED lighting products. Controlling the light color temperature is possible by a long-press of the knob located on the wall panel. The device is intended for surface mounting. The wall panel is powered by one CR2032 battery.
- 2.4G RF wireless transmission technology
- Can control MiBoxer/Mi-Light 2.4G series products
- Control distance: 30m
- Magnetic installation
- Brightness and color temperature adjustable
Specifications
| Application | For monochrome installations (single colour) |
| Maximum output current | Depends on the receiver used |
| Powering the transmitter | 1 x CR2032 battery |
| Number of supported zones/channels | 1 zone |
| Communication method | radio |
| Frequency of radio transmission | 2400-2483.5MHz |
| The range of radio communication | Up to 30 meters in the open area |
| Signal modulation | GFSK |
| Transmission type | one-way |
| Return to previous settings when power is off | No |
| Power consumption in operating mode | 6dBm |
| Power consumption in standby mode | 6uA |
| Touch buttons | Yes |
| The working temperature of the wall panel | -10~40°C |
| IP class | IP20 |
| The dimensions of the device | ?86mm*27mm |
| Installation of a wall panel | surface mounting |
| Colour | White |
| Declarations | RoHS, CE, UKCA |
| Warranty | 2 years |
| EAN | 6970602181978 |
