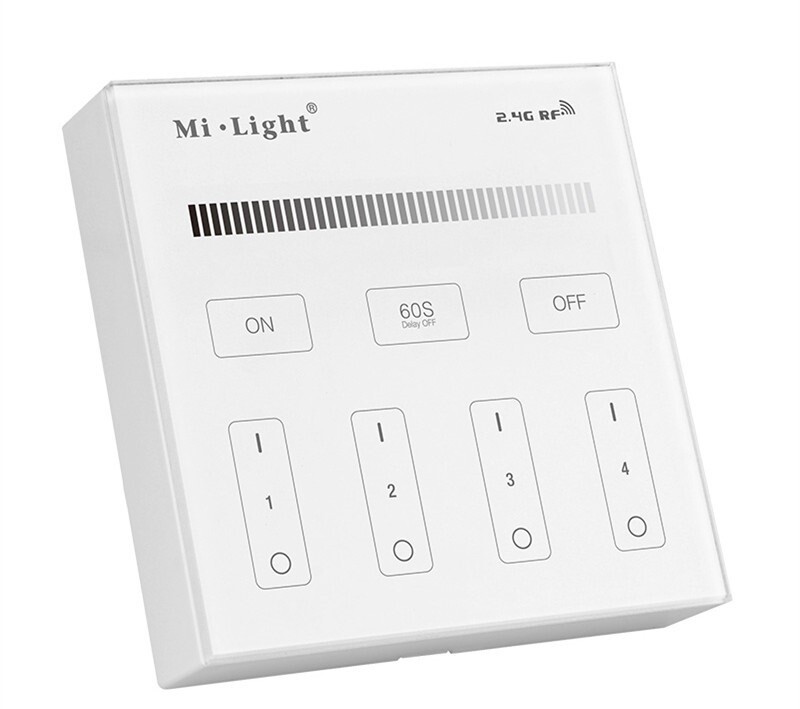

Mi-Light smart panel remote controller B1 (2.4G)
3 sold in last 24 hours
Mi-Light smart panel remote controller B1
Article No. |
181251 |
EAN |
6970602181251 |
MPN |
B1 |
Descriptions
LED wall-mounted radio control unit - 4 ZONE- Mi-Light is a wireless wall panel that enables light control management with the possibility to control a single color led strip. The control unit allows individual access to four zones, which can be controlled by a glass wall panel. The unit is intended for surface mounting. The wall panel is powered by two 1.5V AAA batteries
installation possibilities:
Single MONO - single list dimming
<iframe width="400" height="225" src="https://www.youtube.com/embed/RarDH6owCps" title="B1 B1 B T1" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" allowfullscreen></iframe>
Files
Specifications
| Product Name | B1 Smart Panel Remote Controller |
| Model No. | B1 |
| Working Temperature | -20 -60°C |
| Voltage | 3V (2*AAA Battery) |
| Transmission Frequency | 2400-2483.5MHz |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Standby Power | 20uA |
| Control Distance | 30m |
| Size | 86*20*86mm |
